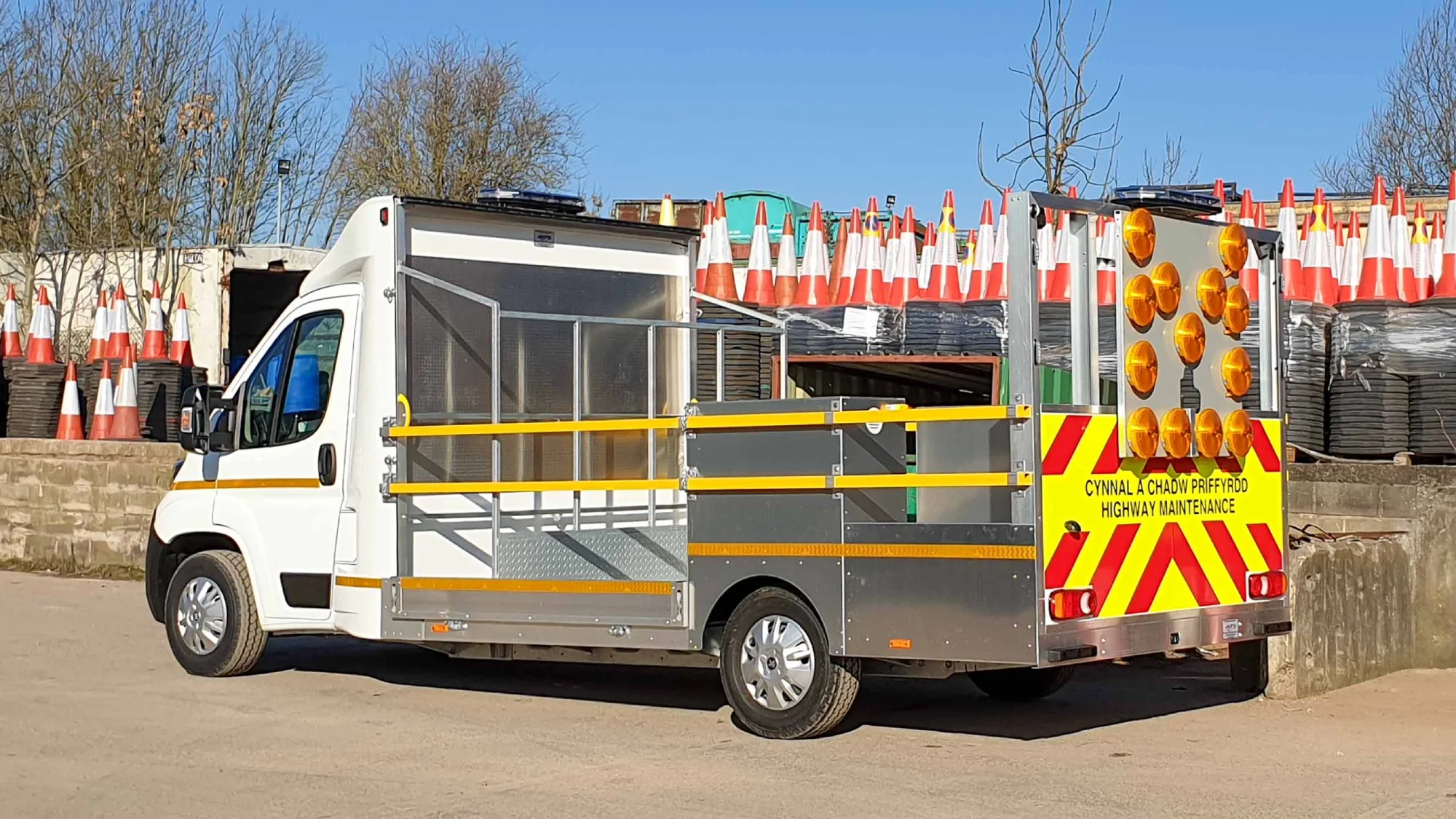

Drop & Go Fixed Rear Gantry Traffic Management Vehicle
Drop & Go® Fixed Rear Gantry Traffic Management Vehicle

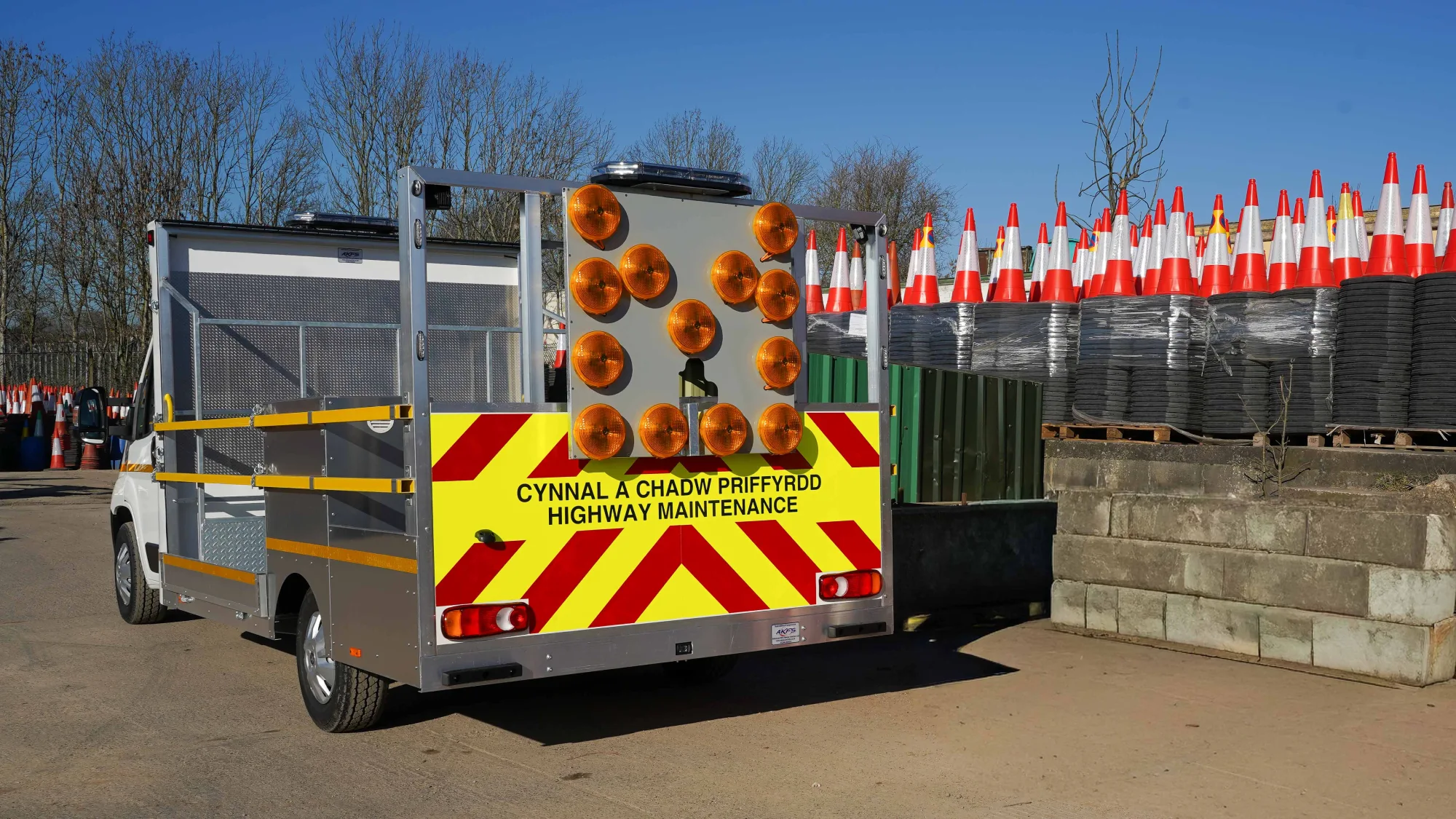

Purpose-built for the traffic management sector, the Drop & Go® Fixed Rear Gantry
Traffic Management Vehicle combines the proven AKFS low-floor design with a fixed rear gantry configuration, delivering a safe, efficient and operator-focused solution for demanding roadside environments. From inner-city projects to high-speed road networks, its compact footprint and low-floor design help crews access areas where larger vehicles may be less practical.
Developed around the low-floor chassis conversion by AL-KO Kober, the Drop & Go® features a floor height of just 550mm, enabling fast, safe kerbside access for operatives and helping reduce the risk of slips, trips and onboard injuries. This low- floor vehicle conversion supports safer movement on and off the body throughout the working day, while the fixed rear gantry provides a permanent rear visibility solution for traffic management operations.
With a durable slip-resistant aluminium floor, operator safety and day-to-day usability are built into the design. The Drop & Go® Fixed Rear Gantry TMV helps keep teams mobile, efficient and supported, trip after trip.

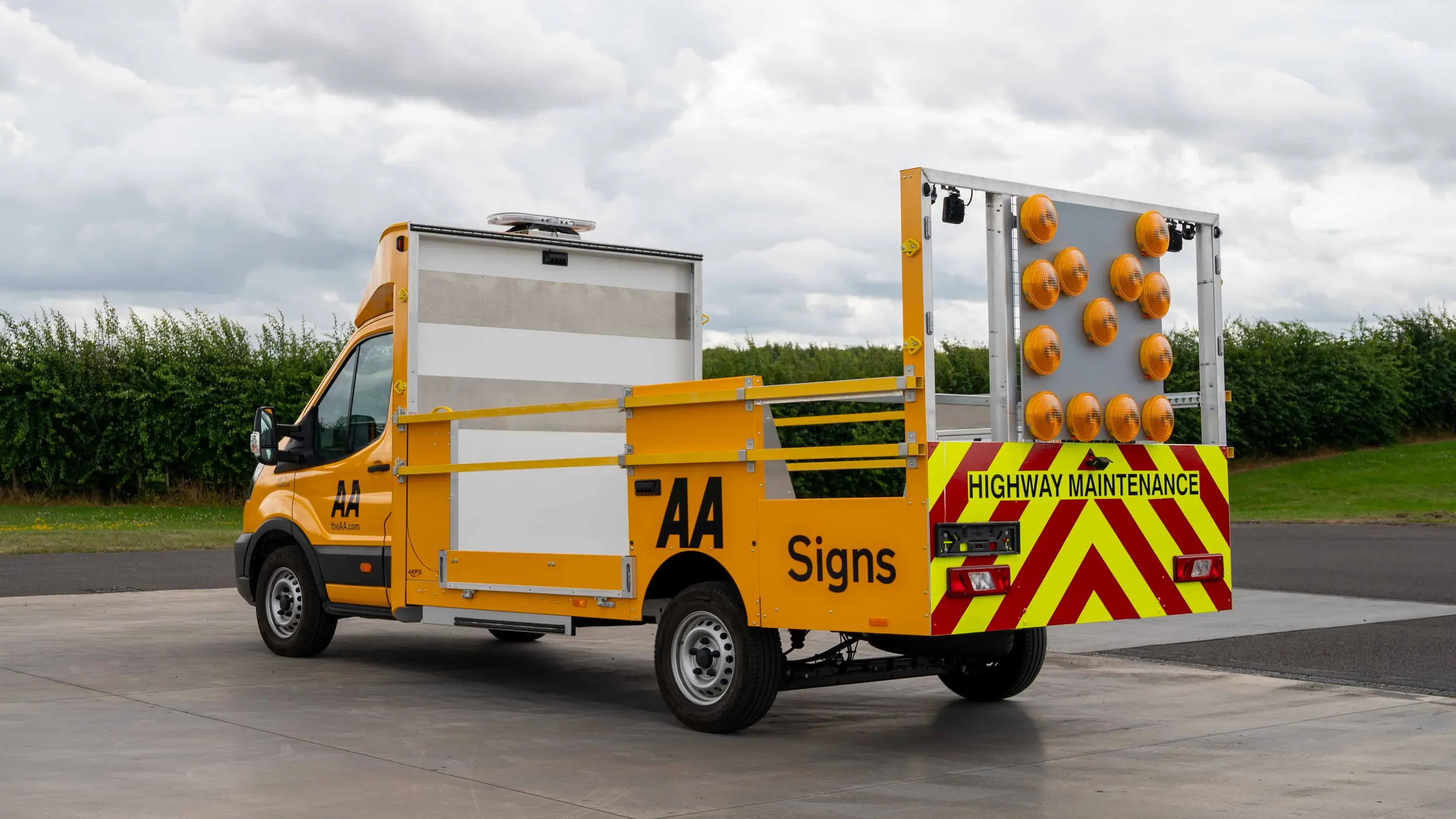

Why choose the Drop & Go® Fixed Rear Gantry TMV?
Widely used across the Traffic Management sector, the Drop & Go® is valued for its versatility, durability, and exceptional build quality. Manufactured using only high-grade materials, it’s built to perform - day in, day out.
Standard Features Include:
- Low 550mm bed height for easy and safe step on and off, dependent upon chassis type
- Unique slip-resistant aluminium ribbed floor
- 3500kg Gross Vehicle Weight (GVW)
- Type-approved chassis conversion, with bed lengths from 3900mm to 4500mm*

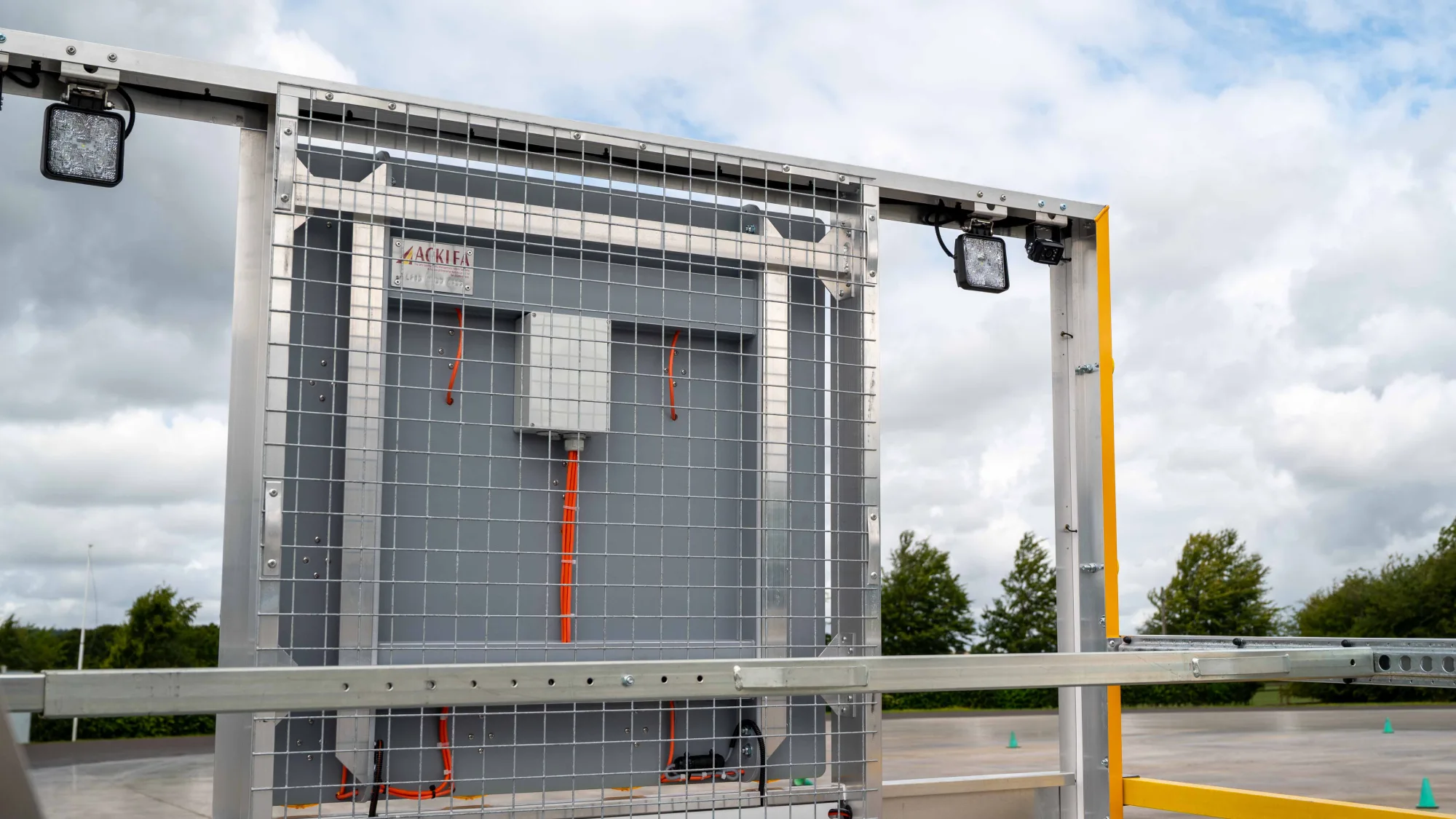

- Fixed rear gantry configuration
- 700mm LED light bar
- Amber LED flashers at rear (4)
- Amber LED flashers grille mounted (2)
- Audible reversing alarm
- Reversing camera
- Work lights (2)

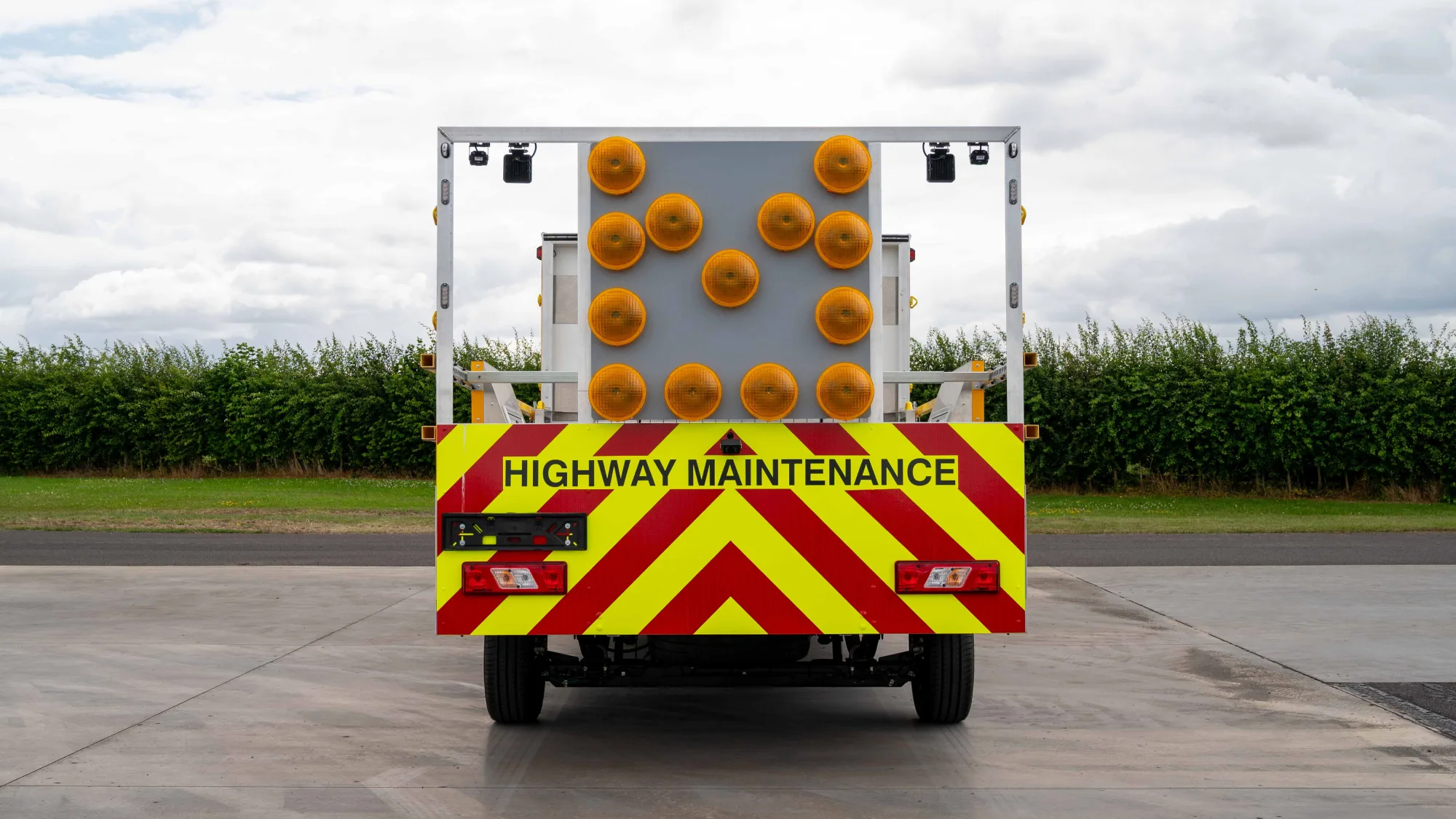

- Chapter 8 Pack: Rear chevrons, 150mm ‘HIGHWAY MAINTENANCE’ text, amber tape on sides, and red tape to door and dropside edges, also available bilingual
Optional Features Include:
- Additional cameras / DVR camera recording facility
Work lights - Scene lights
- Additional compact LED light bars to rear gantry
- Kerbside loading ramp
- Tow bar with 7 or 13 pin electrics (not available on Ford Transit)

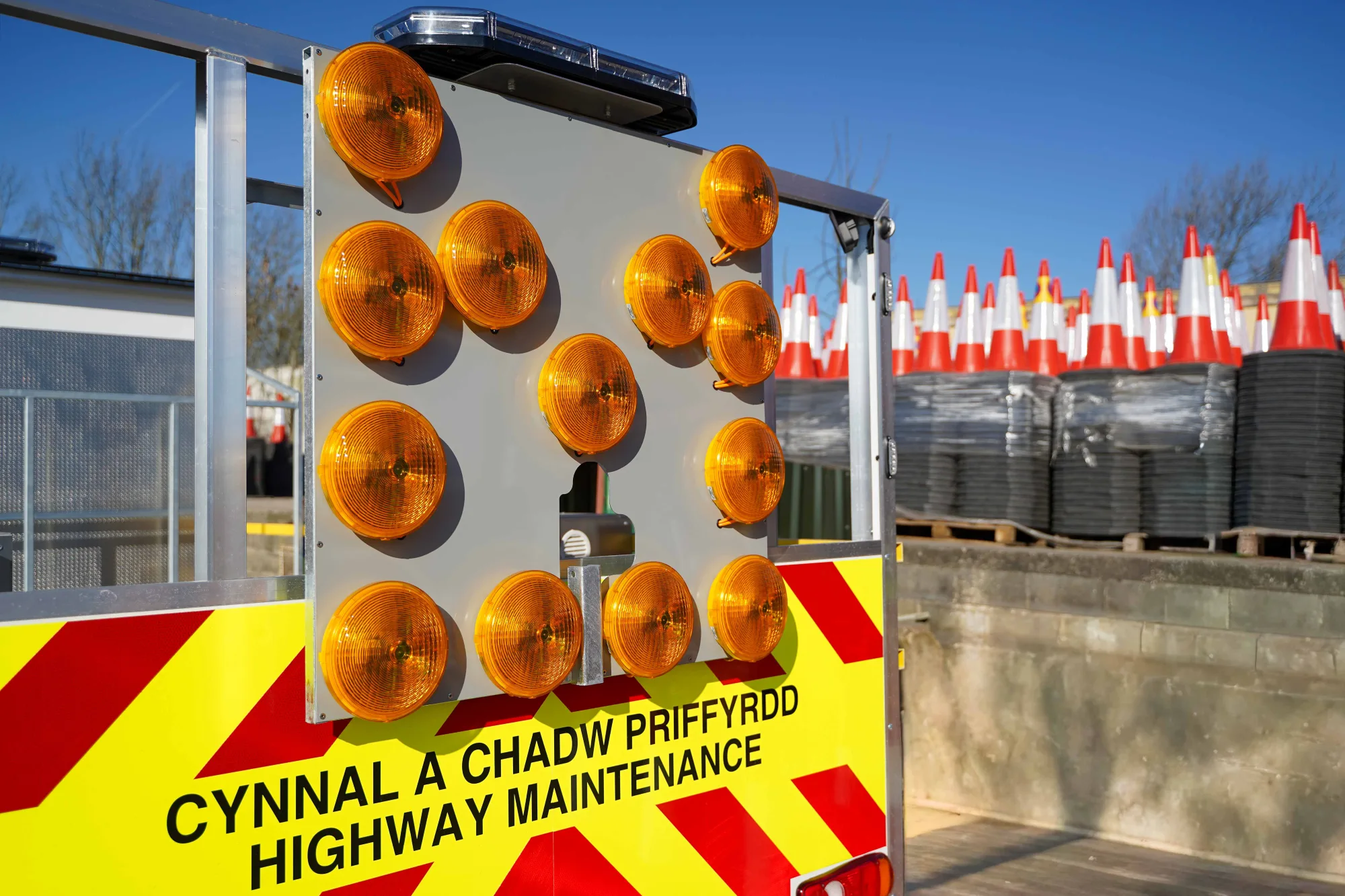

- LP13 Mini Light Arrow Board
- Sign rack
- Angled wheel boxes complete with storage
What brands do AKFS work with?
To provide you with the highest quality conversions, built upon the most durable and reliable chassis available, AKFS works with a range of different vehicle brands to find the most appropriate solution to fulfil your needs, such as:
- Fiat
- Peugeot
- Ford
